Proactor[1]

连接

alt text

  1. The Web Server instructs the Acceptor to initiate an asynchronous accept;

  2. The Acceptor initiates an asynchronous accept with the OS and passes itself as a Completion Handler and a reference to the Completion Dispatcher that will be used to notify the Acceptor upon completion of the asynchronous accept;

  3. The Web Server invokes the event loop of the Completion Dispatcher;

  4. The client connects to the Web Server;

  5. When the asynchronous accept operation completes, the Operating System notifies the Completion Dispatcher;

  6. The Completion Dispatcher notifies the Acceptor;

  7. The Acceptor creates an HTTP Handler;

  8. The HTTP Handler initiates an asynchronous operation to read the request data from the client and passes itself as a Completion Handler and a reference to the Completion Dispatcher that will be used to notify the HTTP Handler upon completion of the asynchronous read.

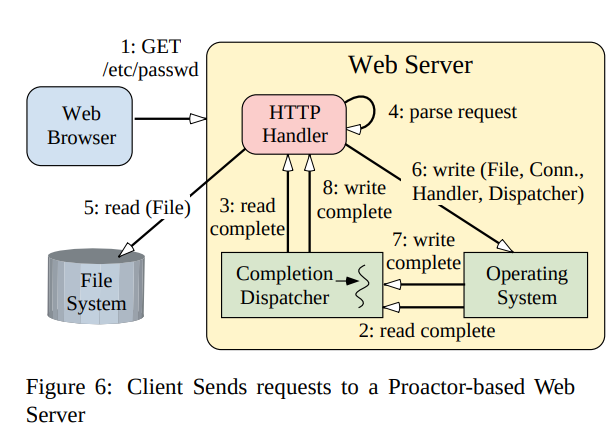

读写

alt text

  1. The client sends an HTTP GET request;

  2. The read operation completes and the Operating System notifies the Completion Dispatcher;

  3. The Completion Dispatcher notifies the HTTP Handler (steps 2 and 3 will repeat until the entire request has been received);

  4. The HTTP Handler parses the request;

  5. The HTTP Handler synchronously reads the requested file;

  6. The HTTP Handler initiates an asynchronous operation to write the file data to the client connection and passes itself as a Completion Handler and a reference to the Completion Dispatcher that will be used to notify the HTTP Handler upon completion of the asynchronous write;

  7. When the write operation completes, the Operating System notifies the Completion Dispatcher;

  8. The Completion Dispatcher then notifies the Completion Handler (steps 6-8 continue until the file has been delivered completely).
