Reactor 模型

传统服务设计[1]

alt text

alt text

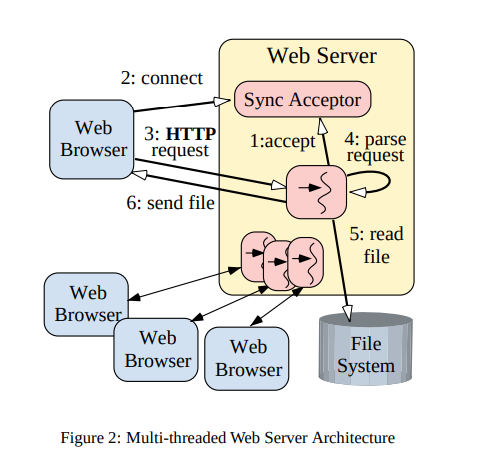

  1. Each thread synchronously blocks in the accept socket call waiting for a client connection request;[1^]

  2. A client connects to the server, and the connection is accepted;

  3. The new client’s HTTP request is synchronously read from the network connection;

  4. The request is parsed;

  5. The requested file is synchronously read;

  6. The file is synchronously sent to the client.

这种设计的缺点：

  • 可伸缩性： 为每个请求分配一个线程，高负载下容易导致资源耗尽（可以使用线程池技术缓解此问题）。

  • 资源利用： 线程在等待 IO 时会完全阻塞，导致资源利用率低。

  • 通吐量低： 频繁的线程切换，使其处理大量小型请求时吞吐量受限。

Reactor[1]

连接

alt text

  1. The Web Server registers an Acceptor with the Initiation Dispatcher to accept new connections;

  2. The Web Server invokes event loop of the Initiation Dispatcher;

  3. A client connects to the Web Server;

  4. The Acceptor is notified by the Initiation Dispatcher of the new connection request and the Acceptor accepts the new connection;

  5. The Acceptor creates an HTTP Handler to service the new client;

  6. HTTP Handler registers the connection with the Initiation Dispatcher for reading client request data (that is, when the connection becomes “ready for reading”);

  7. The HTTP Handler services the request from the new client.

读写

alt text

  1. The client sends an HTTP GET request;

  2. The Initiation Dispatcher notifies the HTTP Handler when client request data arrives at the server;

  3. The request is read in a non-blocking manner such that the read operation returns EWOULDBLOCK if the operation would cause the calling thread to block (steps 2 and 3 repeat until the request has been completely read);

  4. The HTTP Handler parses the HTTP request;

  5. The requested file is synchronously read from the file system;

  6. The HTTP Handler registers the connection with the Initiation Dispatcher for sending file data (that is, when the connection becomes “ready for writing”);

  7. The Initiation Dispatcher notifies the HTTP Handler when the TCP connection is ready for writing;

  8. The HTTP Handler sends the requested file to the client in a non-blocking manner such that the write operation returns EWOULDBLOCK if the operation would cause the calling thread to block (steps 7 and 8 will repeat until the data has been delivered completely).

Reactor 单线程[3]

alt text

一般不会这样子使用。

Reactor 使用线程池[3]

alt text

这就是 netty 中 bossGroup 和 workerGroup 使用同一个 EventLoopGroup 的模式。

1    EventLoopGroup eventLoopGroup = new NioEventLoopGroup(); // (1)
2    ServerBootstrap server = new ServerBootstrap(); // (2)
3    server.group(eventLoopGroup)
4        .channel(NioServerSocketChannel.class)
5        //...

多个 Reactor

alt text

这其是就是 netty 中 bossGroup 和 workerGroup，一个专门用来查询客户端的连接事件，一个专门用来查询连接的读写事件。

 1    EventLoopGroup bossGroup = new NioEventLoopGroup(); // (1)
 2    EventLoopGroup workerGroup = new NioEventLoopGroup();
 3    ServerBootstrap server = new ServerBootstrap(); // (2)
 4    server.group(bossGroup, workerGroup)
 5        .channel(NioServerSocketChannel.class) // (3)
 6        .childHandler(new ChannelInitializer<SocketChannel>() { // (4)
 7            @Override
 8            public void initChannel(SocketChannel ch) throws Exception {
 9
10            }
11        })
12        .option(ChannelOption.SO_BACKLOG, 128)          // (5)
13        .childOption(ChannelOption.SO_KEEPALIVE, true); // (6)

Proactor[2]

经典服务设计使用的是阻塞IO，不能有效的利用资源，Reactor 服务设计使用 IO 多路复用，是目前使用最广泛的模式，也有进一步的优化设计——Proactor，但目前使用并不广泛，主要是因为它依赖于操作系统提供的异步 IO，而且不太符合人类直觉，基于它设计的程序理解起来比较困难。（Linux 中 的 io_uring 异步 io 估计会流性起来 ）。
